AM 1202
Tessonics Acoustic Microscope

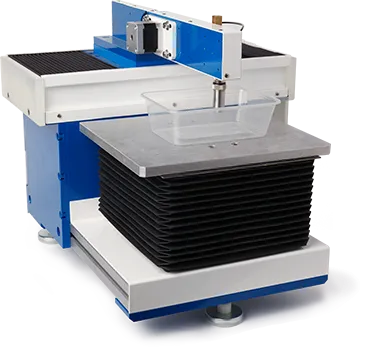

The universal acoustic microscope Tessonics AM 1202 is built for nondestructive evaluation and imaging of the internal structure of samples. The main application areas are: industrial quality control and biomedical research. The device has a compact design and wide possibilities for 2D and 3D data analysis. The microscope consists of desktop scanner and computer with data acquisition board.
Application
Inspection and quality control of welded joints
Testing of adhesive bonding
Detection of porosity in castings
Integrity testing in composite materials
Transducers
The microscope is operated with standard spherically-focused transducers in the frequency range of 5 to 100 MHz.
Lens Attachement
Standard UHF connector
Electrical Connection
Axial UHF connector or side mounted microdot connector
Scanning Area
Scanner provides precise movement and positioning of the acoustical lens in area 110 × 150 mm with repeatability not worse then 5 μm in the X and Y direction.
Object Stage
Motorized vertical motion 50 mm and precision 0.5 μm. Angle adjustments in two directions in the range ± 10 degrees
Data Acquisition Board
400 MSa/s, 14 bits, RF bandwidth 500MHz
Operating System
Windows 7, Windows 10
Image Types
A-, B-, C- and M-scans
Scanner Dimensions
400 × 420 × 320 mm
Power
110 - 240 V
Weight
14 kg
